WPML can read a configuration file that tells it what needs translation in themes and plugins. The file is named wpml-config.xml and it’s placed in the root folder of the plugin or theme.

Content

  1. The purpose of the language configuration file
  2. Generating the wpml-config.xml file automatically
  3. Structure and Syntax
  4. Using WPML language configuration file with child themes

Purpose

As part of achieving compatibility with WPML, you should also create a configuration file that will help you with maintaining compatibility in your future releases. WPML can translate anything on your WordPress site, but you need to tell it what needs translation. This file does that.

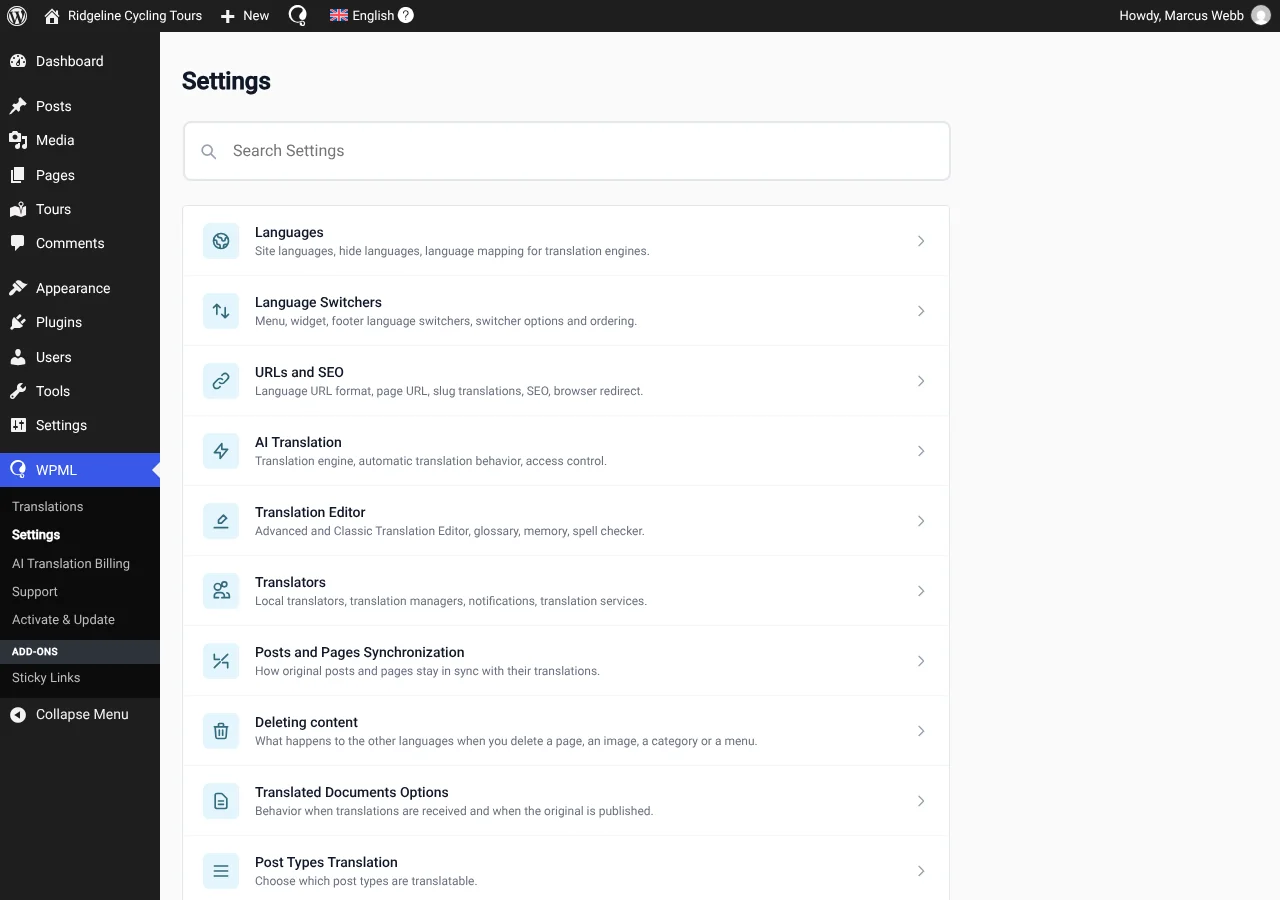

Go to the WPML -> Settings page.

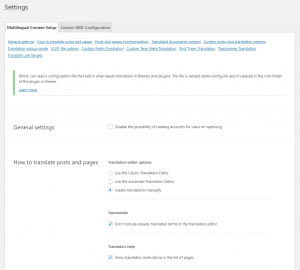

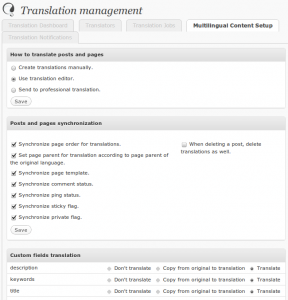

Multilingual content setup page
Multilingual content setup page

This page tells WPML everything it needs to know, including which custom fields to translate or synchronize, which custom post and taxonomies should be multilingual and even which admin texts to translate.

The language configuration file includes this information so that each and every user doesn’t need to manually enter it in the admin page.

For some of the themes and plugins, we are hosting the language configuration files on our servers. You can see a list here. It is set to override the local language configuration file that is placed inside the root folder of the theme or plugin.

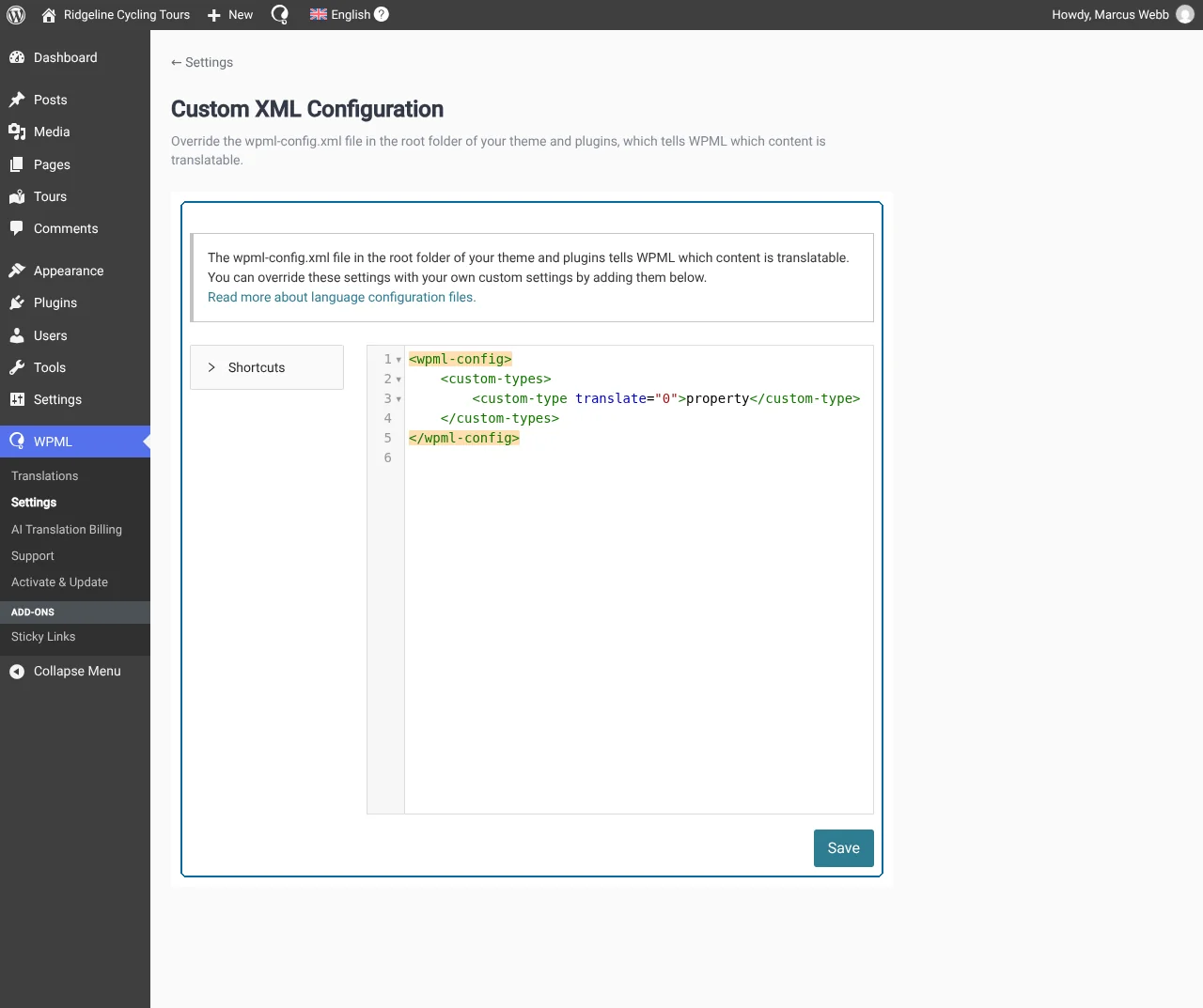

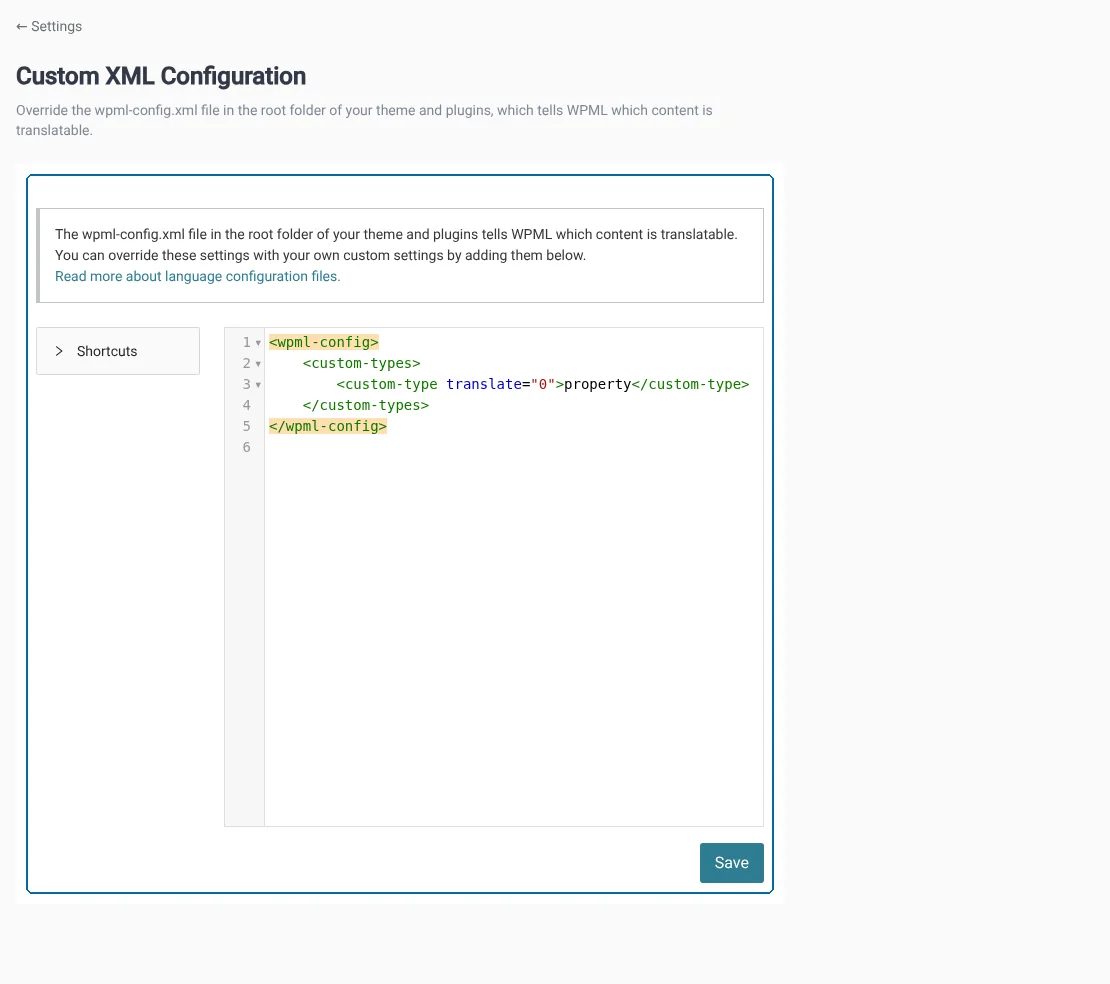

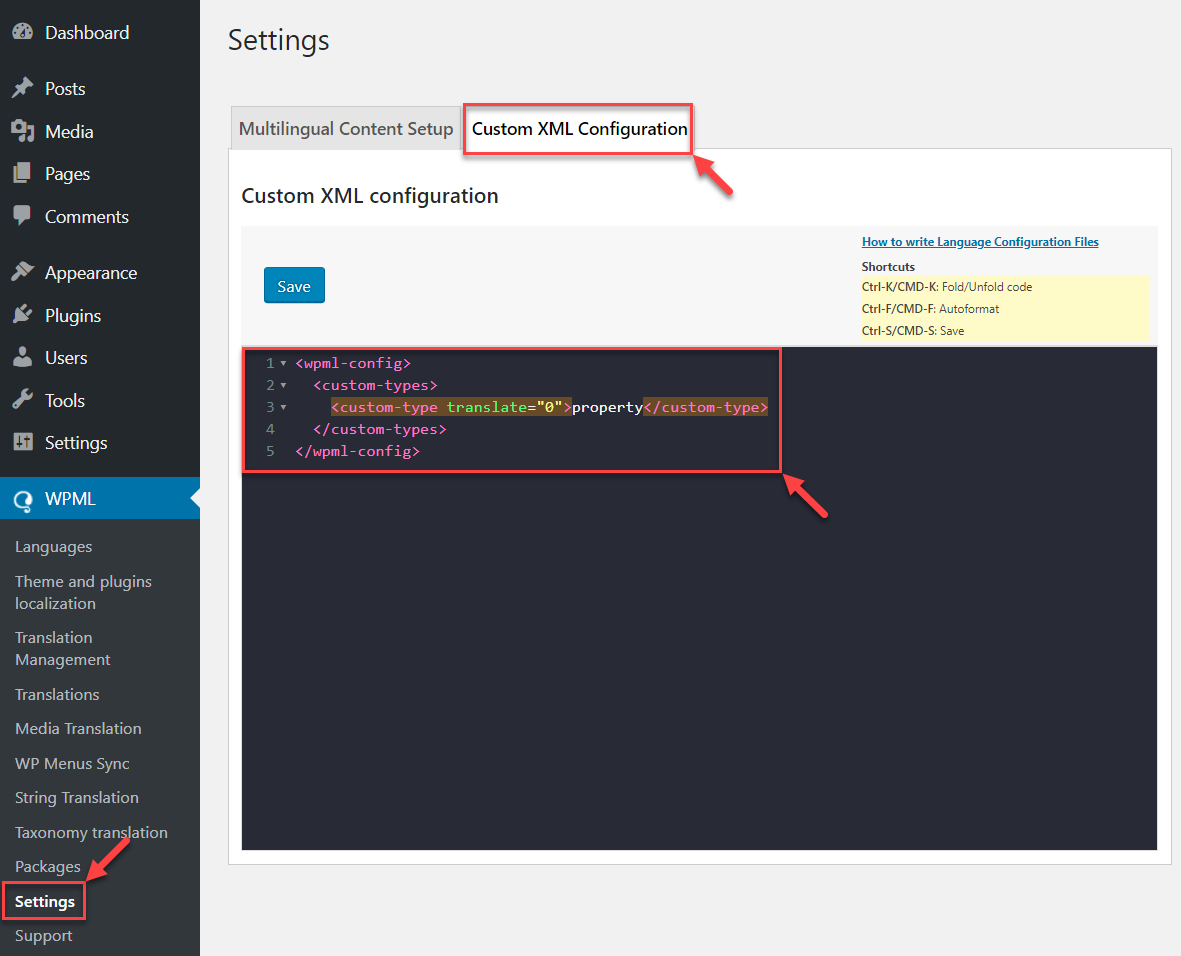

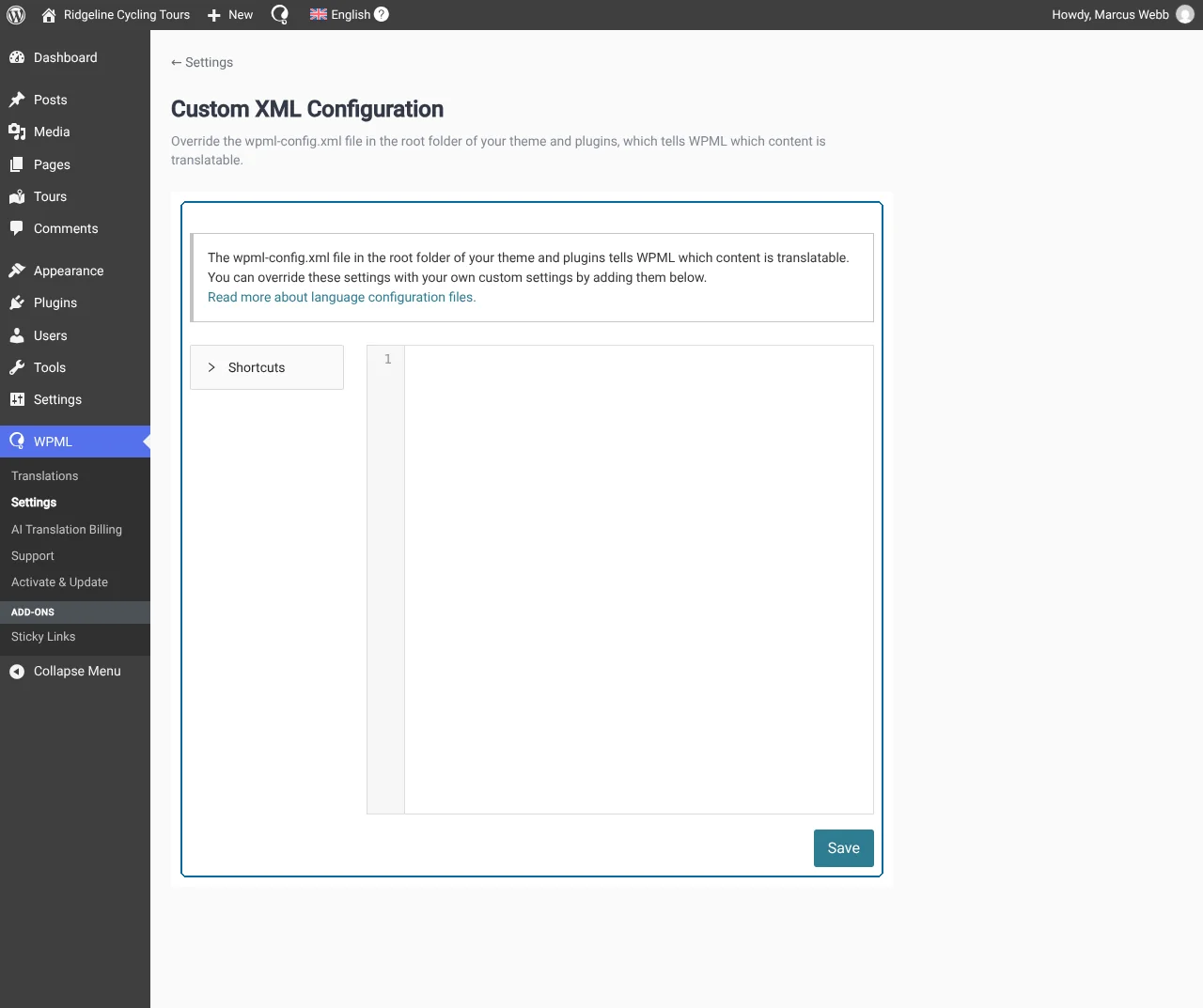

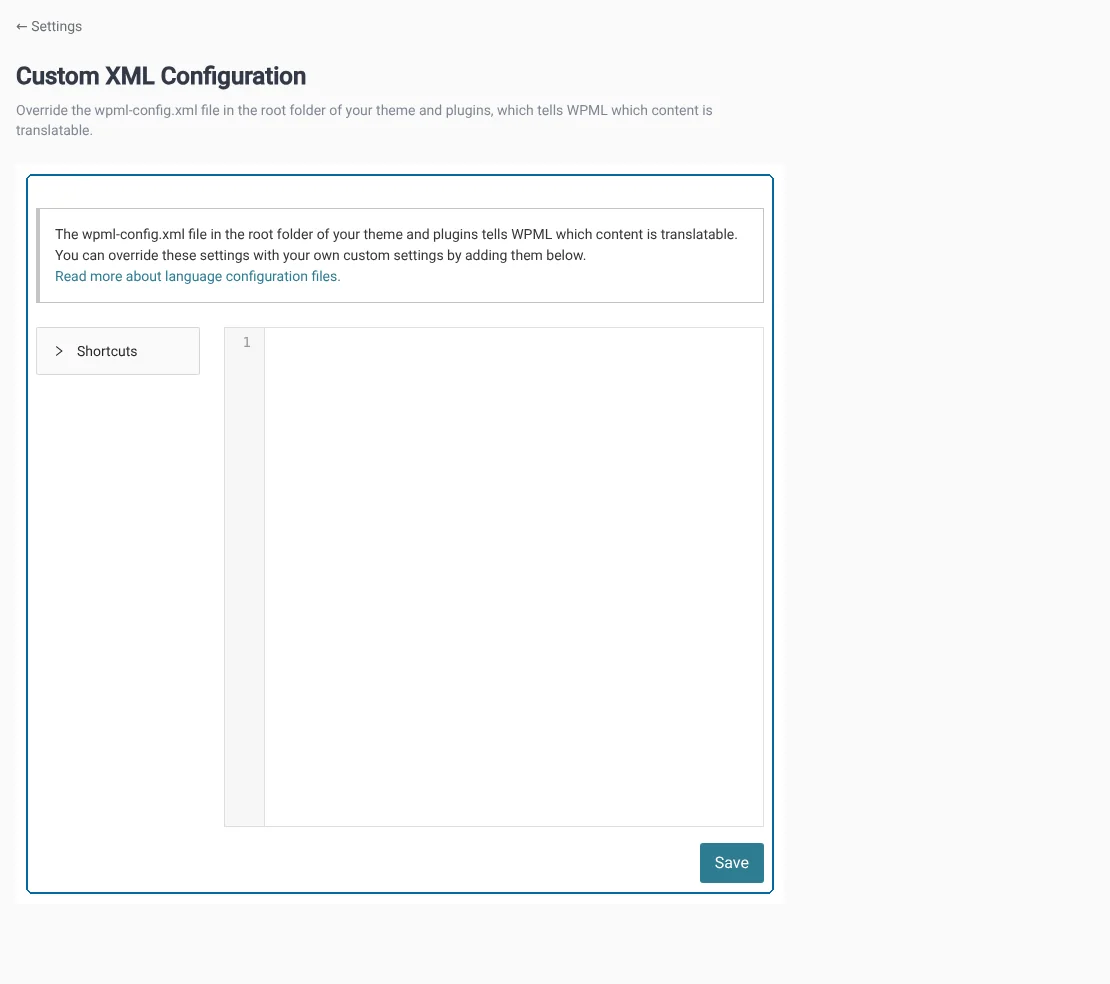

WPML also allows you to manually override any settings loaded by theme and plugin language configuration files. This applies to both, language configuration files inside the root folder of the theme or plugin and the language configuration files hosted on our servers.

Generating the wpml-config.xml file automatically

If you are not familiar with creating XML files, our team has created the Multilingual Tools plugin that makes this task easier. Although it was initially conceived as a tool for helping theme and plugin authors to make their products multilingual-ready, it can easily be used to generate your own wpml-config.xml file.

To learn more about generating your wpml-config.xml file, visit the Multilingual Tools plugin’s page. Specifically, look under the How do I generate language configuration files using Multilingual Tools? section.

Once you have the configuration file, add it to the root of your theme’s folder. If you already have one, do not overwrite it. Instead, edit your original XML file and add the code generated with the Multilingual Tools plugin.

Please note that this plugin is not intended to be used on the live, production sites.

To read this tutorial and build language configuration files for your themes and plugins, you can start with this example one – wpml-config.zip.

You’ll need to edit it, but you can use the sections and structure of this file.

Structure and Syntax

The content of the wpml-config.xml file has to be wrapped into these tags

<wpml-config>

and

</wpml-config>

Currently, four types of data and two WPML configuration setting can be configured to be translated in this configuration file:

  1. Page builder content
  2. Custom fields
  3. Custom types
  4. Custom taxonomies
  5. Gutenberg blocks
  6. Admin texts / wp_options
  7. Language switcher configuration

1. Page builder content

WPML allows you to use the wpml-config.xml file to define shortcodes that need to be added to content translation.

1.1 Translate strings

Let’s consider an example where you have a text separator added to a page using Visual Composer. That separator has a title, and its shortcode looks like this:

[vc_text_separator title="Separator Title"]

In order to translate this text separator’s title, we need to add a few lines to our wpml-config.xml file. This way, WPML will “know” that the title of that separator needs translation. This actually follows the very same logic as the one used for the custom post types, custom fields, and others.

The following code is an example what we need to add to the wpml-config.xml file in this case.

Example of adding a page builder shortcode to the wpml-config.xml file
<shortcodes>
        <shortcode>
            <tag>vc_text_separator</tag>
            <attributes>
                <attribute>title</attribute>
            </attributes>
        </shortcode>
</shortcodes>
  • Let’s go through the structure of the above example:
  • Start with the shortcodes tag. Any shortcodes in your site that need to be translated should be put under this tag.
  • Then use the shortcode tag to wrap all the tags belonging to one, single shortcode.
  • The tag called tag is used to define the name of the shortcode. In this case it is the vc_text_separator.
  • Shortcodes can have one or more attributes, so we wrap them in the attributes (plural) tag and use the attribute (singular) tag to define the title of each attribute.

Page builders include (sometimes) design elements that have link attributes.

You can make internal links automatically point to the translated version of that post using the wpml-config.xml file new shortcode link option: type=”link”.

You can use the encoding attribute with this one. It handles special encoding that various page builders use. The encoding attribute is usually specific to the page builder used. It accepts the following values:

  • base64 – Visual Composer raw HTML shortcode. The HTML is stored as a base64 string in the shortcode.
  • vc_link – Special link formatting for Visual Composer.
  • av_link – Special link formatting for Enfold.
  • allow_html_tags – Normally HTML tags are stripped out of shortcode attributes. Set encoding to allow_html_tags if the shortcode attribute should allow HTML tags. This should be used with caution as allowing HTML tags in some situations can mess up the formatting and could be a security issue
Example of adding shortcode link attribute: type=”link”
<shortcode>
            <tag>av_button</tag>
            <attributes>
                <attribute>label</attribute>
                <attribute type="link" encoding="av_link">link</attribute>
            </attributes>
</shortcode>

If you are thinking about using urlencoded shortcodes, make sure to read page about Translating urlencoded shortcodes.

1.2 Translate media

You can use WPML Media Translation to translate images in page builder content. This is done by conversion of image IDs and image URLs. It is necessary to tell page builder that uses shortcodes how to do this conversion. The following code is an example what we need to add to the wpml-config.xml file in this case.

Example of adding a page builder shortcode to the wpml-config.xml file for image translation
<shortcode>
    <!-- Convert media IDs in `gallery_ids` attribute, and ignore the shortcode content -->
    <tag ignore-content="1">et_pb_gallery</tag>
    <attributes>
        <attribute type="media-ids">gallery_ids</media-attribute>
    <attributes>
</shortcode>
<shortcode>
    <!-- Convert the media URL in the content, translate some string attributes for `title` and `alt`, convert media URL in `src` attribute -->
    <tag type="media-url">et_pb_image</tag>
    <attributes>
        <attribute>title_text</attribute>
        <attribute>alt</attribute>
        <attribute type="media-url">src</attribute>
    </attributes>
</shortcode>

You can use the following values:

  • ignore-content – Can be used within in a tag element. This value is optional and it can be either 0 or 1.  You can use this attribute to achieve backward compatibility for new media shortcodes.  If the value is set to the shortcode content will not be processed.
  • type – Can be used within in a tag element. You can also use shortcode content that contains URL of media as the optional value within media-url.
  • type – can also be used within an attribute element. In this case, it can have one of the following optional values:
    • media-ids –  a comma-separated list of media IDs.
    • media-url – URL of media
    • link – points to another page of the site and WPML will automatically convert it to the URL of the page translation

2. Custom fields

The custom field name needs to be provided and also the action that WPML is expected to take: translate, copy, copy-once, ignore.

Example of adding custom fields to the language configuration file
<custom-fields>
 <custom-field action="copy">quantity</custom-field>
 <custom-field action="translate">custom-title</custom-field>
 <custom-field action="copy">weight</custom-field>
 <custom-field action="copy-once">bg-color</custom-field>
 <custom-field action="translate">custom-description</custom-field>
 <custom-field action="ignore">date-added</custom-field>
</custom-fields>

This block will have to be nested under the <wpml-config> tag.

You can set the following translation options for custom fields:

  • translate: allows your user to translate the value of the custom field. These fields are displayed on the Translation Editor screen and can be sent to any of the professional translation services.
  • copy: this action copies the custom field value of the default language to the secondary languages. This means that updating the custom field value of the default language will always be copied to the secondary language. The custom fields set to copy do not show on the Translation Editor screen.
  • copy-once: The value of the custom field is copied to the secondary language in the initial translation process. The custom fields that use the copy-once action will not appear on the Translation Editor screen. However, the user can change the custom field value of the secondary language to be different from the default language using the post editing screen.It is preferred to set the custom fields that hold settings like background color, font color, font size, and others, to copy-once. This allows the user to have different settings for translated content than the ones set for the posts and pages in the default language. For example, the user wants to set the background color of the same element to be yellow in the default language and blue in the secondary language.Please note that editing a field set to copy-once will not mark the field as needs update. This is because the field will not be copied to an existing translation, it is only copied when the translation is created.
  • ignore: this action eliminates the custom field from being copied to the secondary language.

You can add attributes to the <custom-field> tags. These attributes customize the instruction texts in WPML Translation Management Editor.

  • style can be line, textarea or visual, for displaying single line, text area, or WYSIWYG respectively.
  • label is displayed next to the field.
  • group specifies if the custom field belongs to a group and what the label of the group should be. When a field is in a group:

* the field is removed from the custom field section

* the field is added to a the related group’s section

Example of custom fields attributes
<wpml-config>
 <custom-fields>
 <custom-field action="translate" style="line" label="Title">custom-title</custom-field>
 <custom-field action="translate" style="textarea" label="Description">custom-description</custom-field>
 <custom-field action="translate" style="visual" label="Some content" group="Custom group">custom-wysiwyg</custom-field>
 </custom-fields>
</wpml-config>

You can also add optional encode attribute to change the encoding from the default value (no encoding).  Encoding attribute accepts the following values:

  • json
  • base64
  • urlencode

The attribute allows you to use multiple encoding. In that case, values need to be separated with a comma, e.g. encoding="json,base64".

Example of adding custom fields to the language configuration file to change the encoding
<custom-fields>
    <custom-field action="translate" encoding="json,base64">keywords</custom-field>
</custom-fields>

When this wpml-config.xml content is used, these custom fields are displayed in WPML Translation Management Editor, as shown in the following image.

custom-field-attributes

2.1 Translating sub-keys in custom fields

WPML translates all sub-keys in custom fields by default.  It is possible to bypass such behavior by specifying which sub-keys should be translated.

Example of code for translation of sub-keys in custom fields
<custom-fields>
    <custom-field action="translate">with_attributes</custom-field>
    <custom-field action="translate">with_deep_attributes</custom-field>
    <custom-field action="translate">no_attributes</custom-field>
</custom-fields>

<custom-fields-texts>
    <key name="with_attributes">
        <key name="attribute1" />
        <key name="attribute2" />
    </key>
    <key name="with_deep_attributes">
        <key name="attribute1" />
        <key name="attribute2">
            <key name="level1">
                <key name="level2"></key>
            </key>
        </key>

    </key>
</custom-fields-texts>

It is also possible to use wildcards the same way as they are used for Admin texts:

  • Match all subfields starting with title- using code:
    <key name="title-*" />
  • Match all subfields and is generally used to match an array index using code:
    <key name="*" />
  • To get [{"title":"First title"},{"title":"Second title"}] use code
    Example of configuration file with wildcards
    <custom-fields-texts>
     <key name="key-name">
       <key name="*">
         <key name="keyword" />
       </key>
     </key>
    </custom-fields-texts>

3. Custom types

The custom post types that WPML should translate.

Custom types in the language configuration file
<custom-types>
 <custom-type translate="1">book</custom-type>
 <custom-type translate="1">DVD</custom-type>
</custom-types>

You can add the “display-as-translated” attribute to the tag to show the post types in the defualt language if no translation exists.
Using the Display as translated attribute with custom types
<custom-types>
 <custom-type translate="1" display-as-translated="1">movie</custom-type>
</custom-types>

4. Custom taxonomies

The custom taxonomies that your plugin might be using and that are already registered with WP.

Custom taxonomies in the language configuration file
<taxonomies>
 <taxonomy translate="1">genre</taxonomy>
 <taxonomy translate="1">type</taxonomy>
 <taxonomy translate="0">publisher</taxonomy>
</taxonomies>

Note: the taxonomies that don’t need translation can simple be omitted from this list.

You can add the “display-as-translated” attribute to the tag to show the taxonomies in the default language if no translation exists.

Using the Display as translated attribute with taxonomies
<taxonomies>
 <taxonomy translate="1" display-as-translated="1">wild west</taxonomy>
</taxonomies>

5. Gutenberg blocks

Gutenberg is the new editor coming with the WordPress 5.0 release. In this editor, you build content using blocks.

You can specify which parts of your Gutenberg block needs to be translated by adding settings to wpml-config.xml.

Xpath is used to define parts of the text that need to be translated.

Let us say that we have an image that is shown using the following code:

Example of image that needs to be translated
<!-- wp:image {"id":3} -->
<figure class="wp-block-image"><img src="http://example.com/wp-content/uploads/2018/07/figure-2.png" alt="Image alt text" class="wp-image-3"/><figcaption>Image Caption</figcaption></figure>
<!-- /wp:image -->

We want to translate the figcaption and the alt attribute values of this image.

To achieve this, the following code needs to be inserted into wpml-config.xml:

Example of settings for translation of Gutenberg block
<gutenberg-blocks>
    <gutenberg-block type="core/image">
        <xpath>//figure/figcaption</xpath>
        <xpath>//figure/img/@alt</xpath>
    </gutenberg-block>
</gutenberg-blocks>

Please bear in mind that the type is core/image and not wp:image since this is the value returned by the block API.

6. Admin texts / wp_options

Strings that are part of the options that the plugins or themes save in the wp_options table.

When themes and plugins use get_option, they read values from the wp_options table. WPML can filter these calls and provide translation to the values of these options.

This works if the wp_option record is a simple string but also when it’s a serialized array.

To translate a single option, add a key entry under admin-texts. To translate a serialized array, add several keys under a key, like you can see in my_plugin_options in the example below.

Admin texts in the language configuration file
<admin-texts>
 <key name="my_plugins_options">
  <key name="option_name_1" />
  <key name="option_name_2" />
  <key name="options_group_1">
   <key name="sub_option_name_11" />
   <key name="sub_option_name_12" />
  </key>
  <key name="options_group_2">
   <key name="sub_option_name_21" />
   <key name="sub_option_name_22" />
  </key>
 </key>
 <key name="simple_string_option"/>
</admin-texts>

It’s possible to use the wildcard * in sub-keys like the following case.

Example of using wildcard
<admin-texts>
  <key name="testing_option">
    <key name="*"/>
  </key>
</admin-texts>

It’s equal to this code:

The equivalent code
<admin-texts>
  <key name="testing_option">
    <key name="sub_key_1"/>
    <key name="sub_key_2">
      <key name="sub_sub_21">
        <key name="sub_sub_211"/>
      </key>
      <key name="sub_sub_21"/>
    </key>
    <key name="more_sub_keys"/>
  </key>
</admin-texts>

Please note that the wildcard * does NOT work in parent keys:

The wildcard does not work in parent keys
<admin-texts>
  <key name="some_option_*" />
  <key name="*"/>
</admin-texts>

7. Language switcher configuration

Enables a specific configuration for the WPML built-in language switcher. It can also be used for resetting the language switcher configuration if it was changed from the backend (from its initial values).

To see new changes, make sure to click the Restore default button on the bottom of the WPML -> Languages page.

Example of adding custom configuration for the built-in WPML language switcher
<language-switcher-settings>
    <key name="additional_css">{inline CSS styles}</key>
    <key name="link_empty">{0 or 1}</key>
    <key name="copy_parameters">{parameter1, parameter2}</key>
    <key name="sidebars">
        <key name="{sidebar slug}">
            <key name="display_flags">{0 or 1}</key>
            <key name="display_names_in_current_lang">{0 or 1}</key>
            <key name="display_names_in_native_lang">{0 or 1}</key>
            <key name="display_link_for_current_lang">{0 or 1}</key>
            <key name="widget_title">{widget title}</key>
            <key name="template">{template slug}</key>
            <!-- color picker keys -->
            <key name="background_normal">#{hex color}</key>
            <key name="border_normal">#{hex color}</key>
            <key name="font_current_normal">#{hex color}</key>
            <key name="font_current_hover">#{hex color}</key>
            <key name="background_current_normal">#{hex color}</key>
            <key name="background_current_hover">#{hex color}</key>
            <key name="font_other_normal">#{hex color}</key>
            <key name="font_other_hover">#{hex color}</key>
            <key name="background_other_normal">#{hex color}</key>
            <key name="background_other_hover">#{hex color}</key>
        </key>
    </key>
    <key name="statics">
        <key name="footer">
            <key name="show">{0 or 1}</key>
            <key name="display_flags">{0 or 1}</key>
            <key name="display_names_in_current_lang">{0 or 1}</key>
            <key name="display_names_in_native_lang">{0 or 1}</key>
            <key name="display_link_for_current_lang">{0 or 1}</key>
            <key name="template">{template slug}</key>
            <!-- color picker keys -->
            <key name="background_normal">#{hex color}</key>
            <key name="border_normal">#{hex color}</key>
            <key name="font_current_normal">#{hex color}</key>
            <key name="font_current_hover">#{hex color}</key>
            <key name="background_current_normal">#{hex color}</key>
            <key name="background_current_hover">#{hex color}</key>
            <key name="font_other_normal">#{hex color}</key>
            <key name="font_other_hover">#{hex color}</key>
            <key name="background_other_normal">#{hex color}</key>
            <key name="background_other_hover">#{hex color}</key>
        </key>
        <key name="post_translations">
            <key name="show">{0 or 1}</key>
            <key name="display_flags">{0 or 1}</key>
            <key name="display_names_in_current_lang">{0 or 1}</key>
            <key name="display_names_in_native_lang">{0 or 1}</key>
            <key name="display_link_for_current_lang">{0 or 1}</key>
            <key name="display_before_content">{0 or 1}</key>
            <key name="display_after_content">{0 or 1}</key>
            <key name="template">{template slug}</key>
            <key name="availability_text">{string like "See post translations: %s"}</key>
        </key>
        <key name="shortcode_actions">
            <key name="display_flags">{0 or 1}</key>
            <key name="display_names_in_current_lang">{0 or 1}</key>
            <key name="display_names_in_native_lang">{0 or 1}</key>
            <key name="display_link_for_current_lang">{0 or 1}</key>
            <key name="template">{template slug}</key>
            <!-- color picker keys -->
            <key name="background_normal">#{hex color}</key>
            <key name="border_normal">#{hex color}</key>
            <key name="font_current_normal">#{hex color}</key>
            <key name="font_current_hover">#{hex color}</key>
            <key name="background_current_normal">#{hex color}</key>
            <key name="background_current_hover">#{hex color}</key>
            <key name="font_other_normal">#{hex color}</key>
            <key name="font_other_hover">#{hex color}</key>
            <key name="background_other_normal">#{hex color}</key>
            <key name="background_other_hover">#{hex color}</key>
        </key>
    </key>
</language-switcher-settings>




Not all of these sections have to be present in the configuration file but just the ones that apply to your plugin or theme.

Using WPML language configuration file with child themes

If you are using a child theme, the language configuration file of the parent theme overrides the one found in the child theme. WPML provides a configuration page that allows you to easily override this with any custom settings.

Let us consider an example where the language configuration file of the parent theme is setting the custom post type “Property” to be translatable.

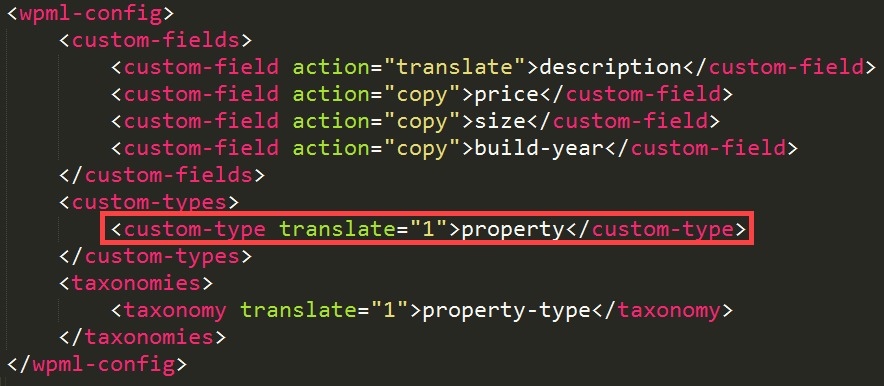

The parent language configuration file is setting the property custom post type to translate

If you are using a child theme and want to set the custom post type “Property” to be non-translatable, navigate to the WPML -> Settings page and click on the Custom XML Configuration tab. Use the editor to set the custom post type “Property” to be non-translatable. Simply, set the translate attribute value to 0 instead of 1.

Overriding the language configuration settings of the parent theme
Overriding the language configuration settings of the parent theme

The settings in the Custom XML Configuration tab are prioritized over the settings in the language configuration file in the parent theme.
